PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies

Updated:2025-03-13

Brand：Ophir
Model：PE9-ES-C
Description: The PE9-ES-C is a pyroelectric energy meter for very low energies with an 8mm aperture. It can measure energies from 0.1uJ up to 200uJ. It can operate at repetition rates up to 25kHz and covers the sp
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Description：

The PE9-ES-C is a pyroelectric energy meter for very low energies with an 8mm aperture. It can measure energies from 0.1uJ up to 200uJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

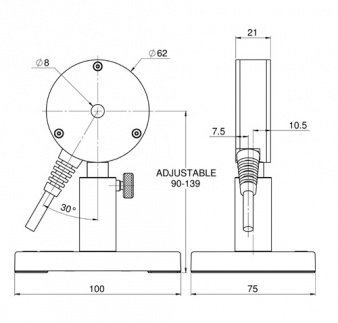

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Drawing：

PE9-ES-C Drawing

PE9-ES-C 7Z02949 Pyroelectric Energy Meter For Very Low Energies Specifications：

Absorber Type	metallic
Aperture	?8mm
Spectral Range	0.15-12μm
Energy Range	0.1μJ-200μJ
Maximum Frequency	25,000Hz
Dimensions	?62 W x 21 D (mm)
Max Pulse Energy	200μJ
Max Average Power Density	30W/cm2
Max Pulse Width	20μs
Damage Threshold(for <100ns)	0.1J/cm2
Damage Threshold(for 2ms)	6J/cm2
Max Average Power	2W
